Magnetisation Grade:         N35
Magnet Material: Neodymium-Iron-Boron (NdFeB, Neo)
Magnet ID:              RMS-IT-4331-2-Holes
Plating / Coating:  Rubber or Plastic Jacket
Shape:         Block Magnetic systems with Internal Thread / with 2 holes
Magnetic systems Magnet Size:
Total weight 28 g
Total width B 31 mm
Total height H 6.9 mm
Total length L 43 mm
Pot height h1 6 mm
Thread standard m M4
Thread length h6 4.5 mm
Tolerance:         ±0.05 mm
Magnetisation Direction:    Axial /  Diametrical
Residual Magnetic Flux Density (Br):  1170-1220 mT (11.7-12.2 kGs)
Energy Density (BH)max:              263-287 KJ/m³  (33-36 MGOe)
Coercivity Force (Hcb):              ≥ 868 kA/m ( ≥ 10.9 kOe)
Intrinsic Coercivity Force (Hcj):   ≥ 955  kA/m ( ≥ 12 kOe)
Maximum Operation Temperature: 80 °C
Delivery Time:           14-35 days

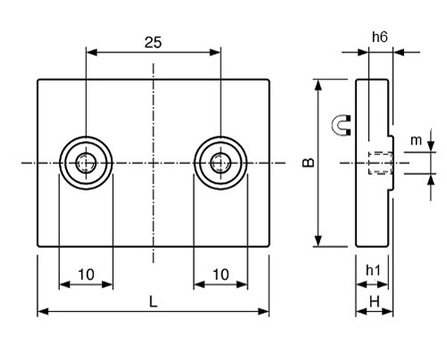

Measurements:

Some versions of the Pot Magnet with Internal Threaded Stud / Boss Mounting have a white painted casing. This makes them an ideal choice for Point of Sale magnets, Window Dressing magnets, Ceiling magnets and Door magnets, etc.
The Pot Magnet with Internal Threaded Stud / Boss Mounting range offers maximum clamping forces from 4kg up to 130kg with sizes ranging from 25mm to 125mm diameters.
The Pot Magnet with Internal Threaded Stud / Boss Mounting is dimensioned by giving the main Pot Magnet dimensions then giving the size of the threaded hole and finally the overall height of the Pot Magnet.
It is possible to produce bespoke Pot Magnets with Internal Threaded Stud / Boss Mounting – please contact us for a price. Please also get in touch if you would like a copy of our extended range brochure (both are subject to minimum order quantities).
