Magnetisation Grade:         N35
Magnet Material: Neodymium-Iron-Boron (NdFeB, Neo)
Magnet ID:              RMS-IT-22-N35
Plating / Coating:  Rubber or Plastic Jacket
Shape:         Magnetic systems with Internal Thread

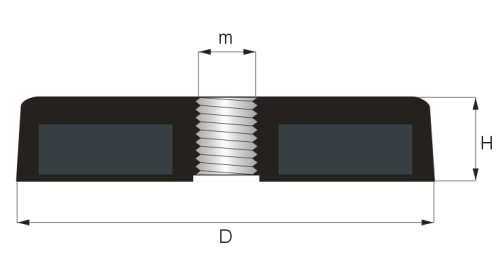

Magnetic systems Magnet Size:
Total weight 9 g
Total height H 6 mm
Total diameter D 22 mm
Thread standard m M4
Tolerance:         ±0.05 mm
Magnetisation Direction:    Axial /  Diametrical
Residual Magnetic Flux Density (Br):  1170-1220 mT (11.7-12.2 kGs)
Energy Density (BH)max:              263-287 KJ/m³  (33-36 MGOe)
Coercivity Force (Hcb):              ≥ 868 kA/m ( ≥ 10.9 kOe)
Intrinsic Coercivity Force (Hcj):   ≥ 955  kA/m ( ≥ 12 kOe)
Maximum Operation Temperature: 80 °C
Delivery Time:           14-35 days
Measurements:

Neodymium Internal Thread Magnets
Counter sink hole is to recess screw head.
Neodymium Internal Thread magnets are widely used in industrial applications such as fastening, holding, hanging or retrieving objects, etc.
Coating: Nickel
Magnetized through thickness, poles on the flat surface
Estimated Pull Force: 65 lbs
