Magnetisation Grade:         N35
Magnet Material: Neodymium-Iron-Boron (NdFeB, Neo)
Magnet ID:              RMS-SB-12-N35
Plating / Coating:  Rubber or Plastic Jacket
Shape:         Magnetic systems with Threaded Bushing / with Screwed Bush

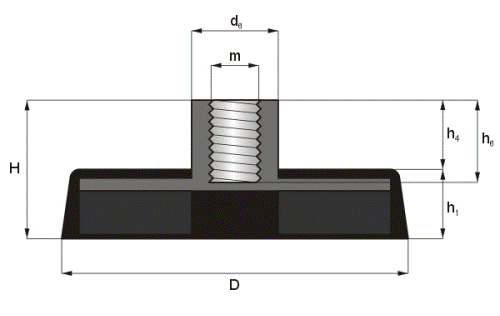

Magnetic systems Magnet Size:
Total weight 6 g
Total height H 14.8 mm
Total diameter D 12 mm
Pot height h1 7 mm
Neck diameter d6 8 mm
Neck height h4 7.8 mm
Thread standard m M4
Thread length h6 9 mm
Tolerance:         ±0.05 mm
Magnetisation Direction:    Axial /  Diametrical
Residual Magnetic Flux Density (Br):  1170-1220 mT (11.7-12.2 kGs)
Energy Density (BH)max:              263-287 KJ/m³  (33-36 MGOe)
Coercivity Force (Hcb):              ≥ 868 kA/m ( ≥ 10.9 kOe)
Intrinsic Coercivity Force (Hcj):   ≥ 955  kA/m ( ≥ 12 kOe)
Maximum Operation Temperature: 80 °C
Delivery Time:           14-35 days
Measurements:

NdFeB Pot Magnets are best for small sized magnetic products with maximum pull strength (ideally when in direct contact with ferromagnetic e.g. mild steel surfaces).
We currently offer four types of Pot Magnet that contain NdFeB magnets:-
NdFeB Pot Magnet with External Threaded Stud / Boss Mounting
NdFeB Pot Magnet with Internal Threaded Mounting (Deep Pot)
NdFeB Pot Magnet with Countersunk Mounting (Shallow Pot)
NdFeB Pot Magnet with Through Hole Mounting
We offer some of the designs as rubber coated magnets to provide extra friction to reduce (this is at the expense of the maximum possible pull force because the rubber introduces an ‘effective’ air gap into the magnetic circuit). The rubber coated pot magnets allow less slippage on vertical surfaces. Standard Pot Magnets typically require only 20% of the maximum possible pull force to start a slip (shear) – the actual value is affected by the levels of friction present.
